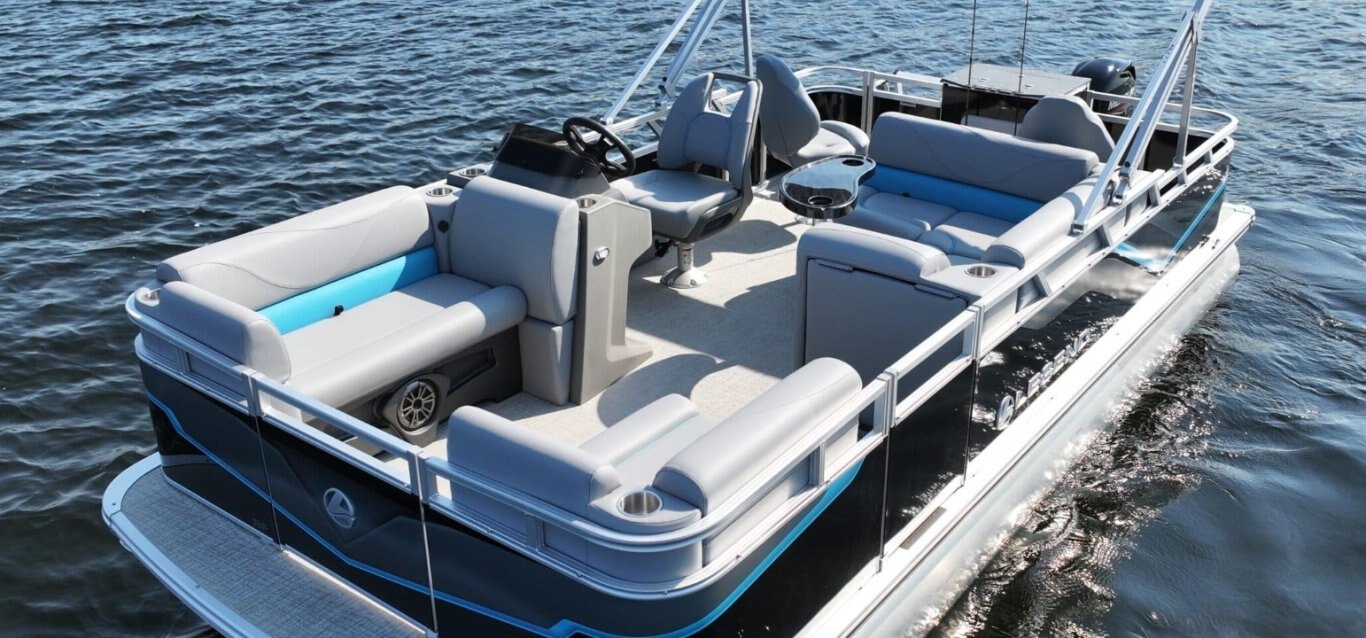

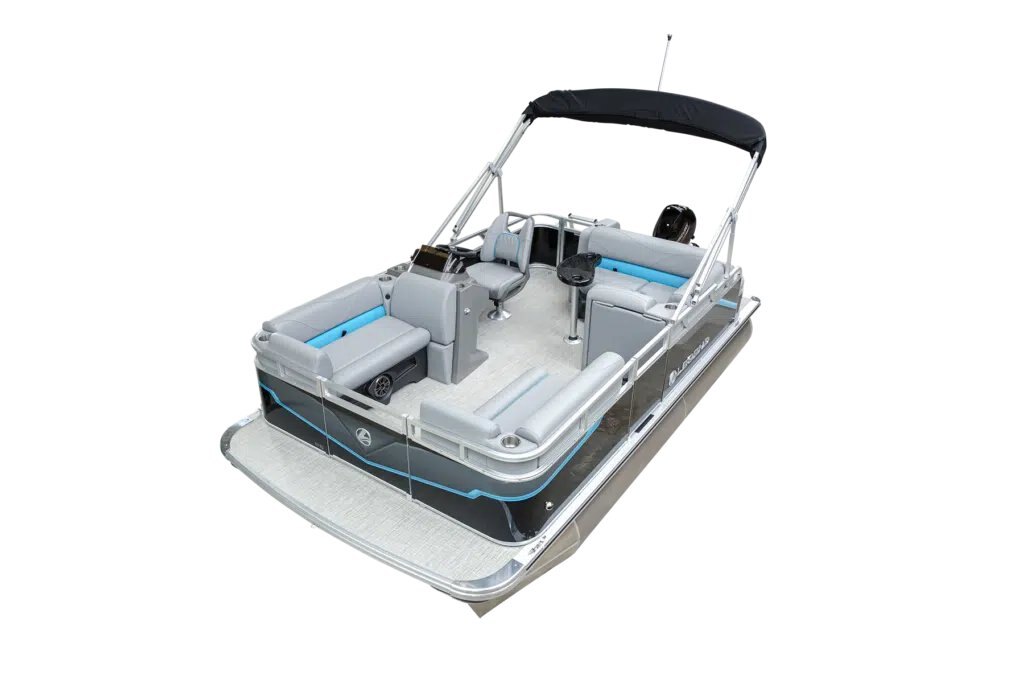

2025 Legend LE 17 RS

Overview

LE Series

Combining affordability and quality, the LE Series is perfect for families and adventurers alike.



Specifications
Model
LE 17 RS
Category Name
Boat
Year
2025
Sale Type
New
Manufacturer
Legend
Beam
96”
Deck Length
16’0”
Fuel Capacity
56L (15 US gal)
Overall Length
17’6”
Pontoon Length
16’3”
Maximum Persons
6
Maximum Capacity
1400 lbs
Pontoon Diameter
23”
Maximum Horsepower
50
key features

Construction

  • 4 deck-mounted lift and mooring cleats
  • Through-bolted floor fasteners and double-sealed seams
  • Anti-vibration foam-backed quiet fencing
  • Tough shark-nosed cones with spray-deflecting fins
  • Performance-enhancing all-aluminum v-transom
  • 8’ beam
  • Pressurized triple-section tube design with ez-drain plug
  • Full-length protective extruded keels on tubes
  • Individually treated 3/4" 7-ply marine-grade plywood
  • 1 1/4” raised aluminum fence rails with 3/8” risers
  • 23" diameter .090 gauge pontoon tubes
  • Vinyl non-skid strips for entry gates
  • Easy access bow, port side and stern gates
  • Fire Extinguisher
  • Aluminum Ladder
  • Aluminum Ladder
  • 16 Ft Tubes
  • 15 Gallon Direct Fill in Mount

Safety

  • Bimini-mounted anchor lights

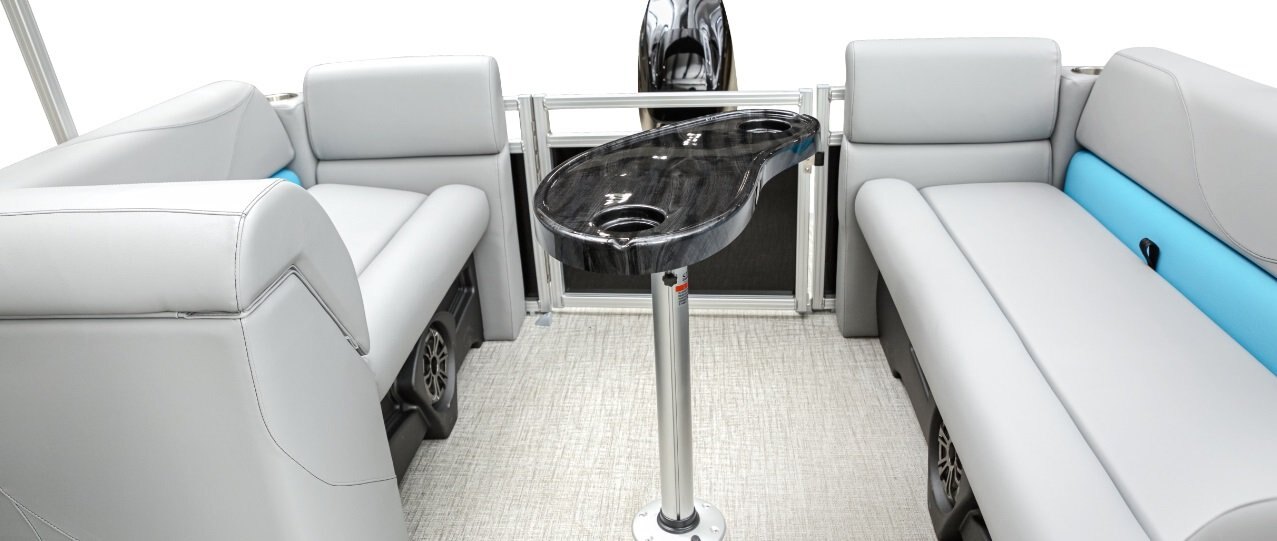

Seating

  • Sport Low Back Chair
  • Sport Low Back Chair
  • 1000 Series Furniture
  • Underseat Storage
  • Bow Port & Starboard Couches
  • L-shaped Rear Couch
  • Rear Facing Bench Seat

Canvas and Tops

  • Black Bimini & Cover Canvas
  • Mooring Cover
  • 8x10 Square Frame

Audio

  • Fusion RA-60
  • 4 Fusion EL Speakers

Console

  • Ez-reset circuit breakers
  • Illuminated gauges
  • Graphite Console
  • Cadet II Rotocast Console
  • Courtesy Light
  • Cadet II Greywood Dash Panel
  • 12V Power Plug
  • Mercury SmartCraft Gauges
  • Windshield
  • Erie Steering Wheel
  • Mechanical Tilt Steering

Decks and Storage

  • Stainless cup holders
  • Bow USB Charging Port
  • Bow USB Charging Port
  • Riptide Shadow Flooring
  • Polished Corner Caps
  • 4 U Bolt and Cleat Combo
  • Small Greywood Kidney Table w/ Base
  • Small Greywood Kidney Table w/ Base
  • Charcoal Cladding
  • Heavy Duty Rub Rail with w/Insert
  • Privacy Station in Privacy Arm
